Prototype Testing Equipment and Setup

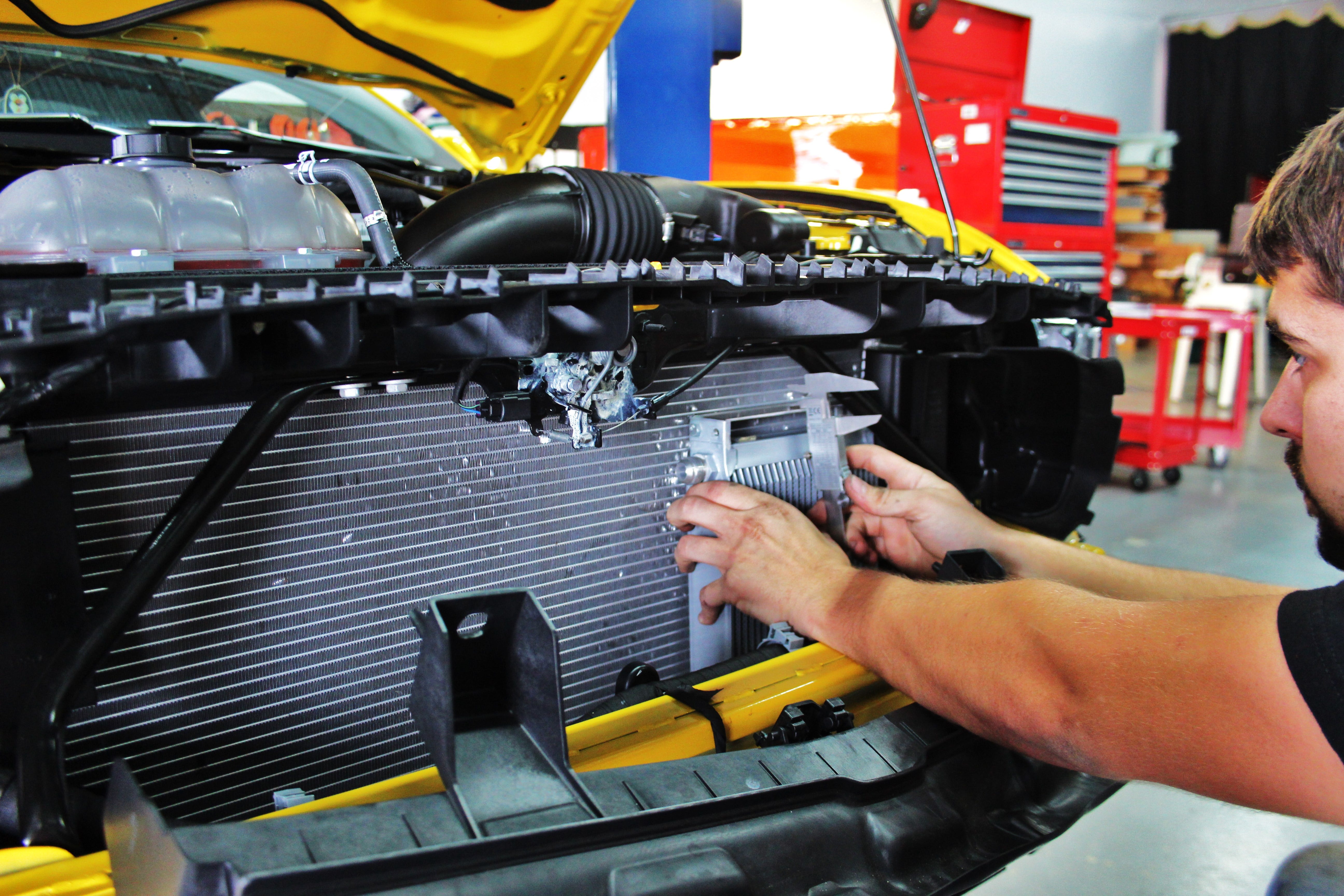

Time for the fun part: product testing! Once we had the brackets mocked up, our lines in place, and our sandwich plate installed, it was time to install our sensors to collect data. We would be collecting both temperature and pressure data for the stock setup and for our installed kit. Check out a shot of our testing sensors installed!

Mishimoto temperature sensors installed

And then our sensor wires are routed back into the cabin.

Mishimoto temperature sensors in vehicle cabin

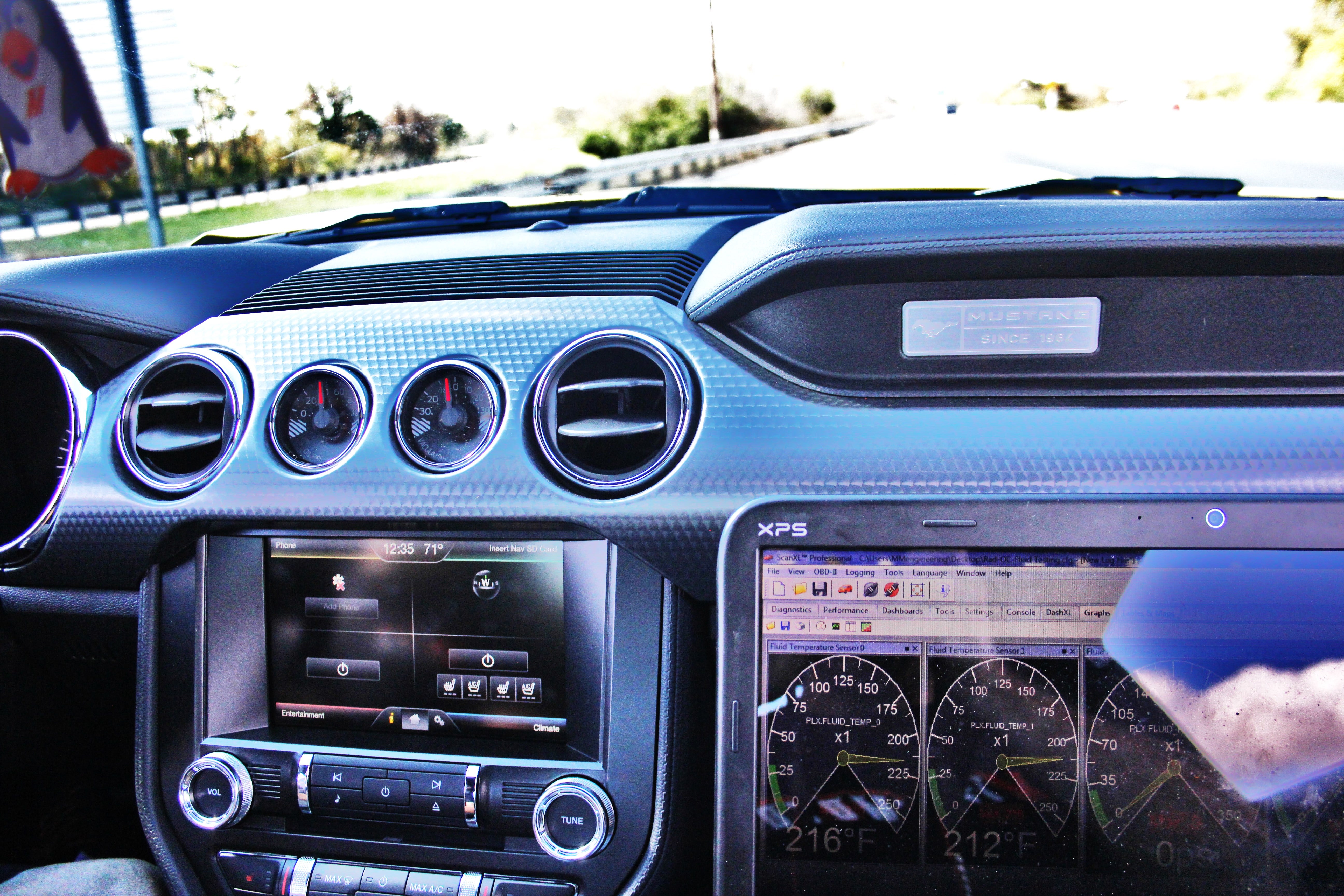

Laptop setup for testing

Everything was now prepared for a few runs on the highway! Our testing conditions are listed below.

Ambient Temperature: 70°F-75°F (21°C-24°C)

Sensors: PLX temperature and pressure sensors

Variable: Mishimoto 19-row Stacked-Plate Oil Cooler Kit (non-thermostatic)

Process: Vehicle was heat-soaked

Interested in purchasing our Mustang EcoBoost oil cooler kit? Check out more details on our product page linked below!

Mishimoto Ford Mustang EcoBoost Oil Cooler Kit

Second Prototype Fabrication

Thank you for joining us for Part 2 of our oil cooler development for the Ford Mustang 2.3L EcoBoost! Last time, we designed our first prototype and evaluated potential pitfalls. We are now prepared to develop a second design, with airflow as our primary target for improvement over the previous mounting position.

This time, we would be positioning the cooler in the center of the grille, in a horizontal orientation. This would ensure that the entire core is exposed to airflow during vehicle motion. Steve, the lead engineer for this project, grabbed some measurements from the vehicle, and began designing a few brackets in 3D. Using these dimensions, the templates were printed so we could fabricate the steel components.

Prototype 2 bracket fabrication

Once we had all three brackets cut, bent, and drilled,
