Model: MMRAD-F150-15

Installation Specs

Performance Aluminium Radiator, fits Ford F-150 2015-2020 PRE-SALE

Name: Performance Aluminum Radiator, fits Ford F-150 2015-2020 PRE-SALE
SKU: MMRAD-F150-15
Price: 747.6 GBP
Availability: InStock

£747.60

(Incl. VAT)

$Login or create an account to earn 623 pts for this product.

Installation Difficulty: Medium

MISHI POINTS INFO

Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.

Installation Specs

Key Benefits

Boost coolant capacity by 45% over the stock heavy-duty radiator — more fluid volume means more thermal buffer before temps climb under sustained towing loads.
55% more surface area and 63% greater core volume than the factory unit work together to move heat out of the system faster during back-to-back hauls.
Includes quick-disconnect O-ring and Magnetic Drain Plug so the install is complete with no additional adapters, no mess, and no missing hardware.
Full aluminium construction with TIG-welded end tanks replaces the plastic-tank factory radiator that cracks under sustained heat and pressure.
High-density fin arrangement and oversized core work together to transfer thermal energy into the airstream more efficiently than the lower-volume OEM unit.
Confirmed direct fit for the 2015–2020 Ford F-150 and 2017–2020 Ford Raptor — drops in without cutting, fabricating, or adapter work.
Oversized core handles the thermal demands of stock and modified F-150 builds, including lifted trucks running under heavier-than-factory loads.
Own it for life — backed by Mishimoto's Lifetime Warranty, your investment is protected long after install day.

Note: Coupons and discounts do not apply to items in pre-sale

See all benefits

Key Benefits

Boost coolant capacity by 45% over the stock heavy-duty radiator — more fluid volume means more thermal buffer before temps climb under sustained towing loads.
55% more surface area and 63% greater core volume than the factory unit work together to move heat out of the system faster during back-to-back hauls.
Includes quick-disconnect O-ring and Magnetic Drain Plug so the install is complete with no additional adapters, no mess, and no missing hardware.
Full aluminium construction with TIG-welded end tanks replaces the plastic-tank factory radiator that cracks under sustained heat and pressure.
High-density fin arrangement and oversized core work together to transfer thermal energy into the airstream more efficiently than the lower-volume OEM unit.
Confirmed direct fit for the 2015–2020 Ford F-150 and 2017–2020 Ford Raptor — drops in without cutting, fabricating, or adapter work.
Oversized core handles the thermal demands of stock and modified F-150 builds, including lifted trucks running under heavier-than-factory loads.
Own it for life — backed by Mishimoto's Lifetime Warranty, your investment is protected long after install day.

The Mishimoto performance aluminium radiator for the 2015-2020 Ford F-150/2017-2020 Ford Raptor is the ideal upgrade over the stock radiator. Whether your 2015-2020 Ford F-150 or Raptor is a daily driver, jobsite hauler, track destroyer, or all three, you should never overlook the importance of installing an upgraded radiator.

The 2015-2020 F-150 came equipped from the factory with two different radiators, a light duty version and a heavy-duty version that's shared with the Raptor. However, no matter which radiator your truck has, you're leaving a lot of potential on the table. The Mishimoto 2015-2020 F-150 radiator is designed and engineered to maximize cooling efficiency. Our radiator holds 45-percent more coolant, boasts a 55-percent increase in surface area, and a 63-percent increase in core volume over the heavy-duty stock radiator. So, even if you have the largest available Ford radiator, you can squeeze even more performance out of your F-150 or Raptor.

The internal transmission cooler in the Mishimoto radiator is also larger than the transmission cooler found in the stock radiators, which will help your transmission run cooler too. The CNC-machined inlet and outlet of the Mishimoto radiator, combined with the included quick-disconnect o-ring, ensure a precise and leak-free fit. Like every Mishimoto Performance Radiator, this 2015-2020 Ford F-150/2017-2020 Ford Raptor radiator is constructed from durable, TIG-welded aluminium and is a direct fit with no cutting or other modifications. Of course, this radiator is protected by the Mishimoto Lifetime Warranty, so you never have to worry about buying another radiator again.

More Information
Overall Length (in)	43.82
Overall Height (in)	19.3
Overall Width (in)	7.3
Core Length (in)	34.6
Core Height (in)	17.89
Core Thickness (in)	2.04
Fluid Capacity (gal)	4.4
Rows	3
Drain Plug Thread Size	M12x1.5
Engine Codes	2.7L EcoBoost V6 3.5L Cyclone V6 3.5L EcoBoost V6 3.5L EcoBoost V6 High-Output 5.0L Coyote V8 3.3L Cyclone V6
Coolant Capacity	4.4

Installation Guides

(Size: 1.2 MB)

Engineering Report

(Size: 2.4 MB)

Mishimoto Radiator
O-Ring
Mishimoto Magnetic Drain Plug
Mounting Hardware
Mishimoto Lifetime Warranty

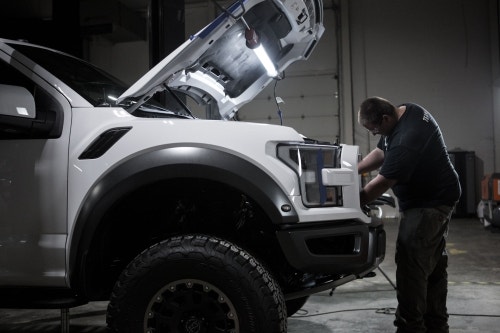

Everyday Hercules - Aluminum Radiator R&D, Part 3: Production

May 31, 2019

As summer begins here in Delaware, it's quickly becoming the season of trailers with boats, jet skis, and campers filling the roads. Most of those trailers are pulled behind massive, oversized trucks that look like they rolled off the showroom floor yesterday. While there's nothing wrong with taking pride in your truck and keeping it clean, my favorite thing to see on the road is the F-150 that still has the toolbox in the back and mud on the tires, towing an old aluminum fishing boat. The drivers of the shiny behemoths might scoff at it from a few feet up, but that F-150 has been that driver's Hercules. You know that truck and its owner have done some work.

Summer is also an opportune time to finish our 2015+ F-150 / 2017+ Raptor radiator. But before we move into the final phase of development, let's look at how we got here. Our first post in this series focused on the stock radiator. Much like our 2011-2014 F-150 radiator, we found that Ford offered multiple cooling options for the

Everyday Hercules - Aluminum Radiator R&D, Part 3: Production

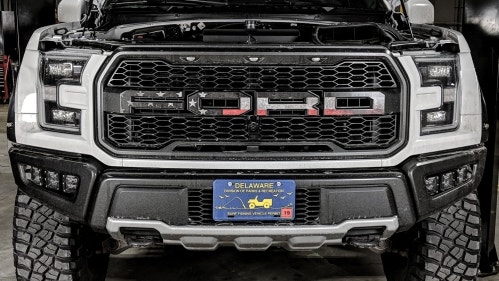

Everyday Hercules - Aluminum Radiator R&D, Part 2: Design & Prototype

March 08, 2019

What haven't I said about Ford's F-150? It's reliable,
affordable, capable, comfortable, and all the other -ables that you'd want from
a truck, except for one. It's not invulnerable. Like every vehicle, time takes its
toll and something's bound to break. If you're lucky, you have some time before
those tolls hit your F-150's cooling system, but it's always a good idea to be prepared.
Mishimoto is working on a radiator to allow you to do just that.

Our last look at the 2015+ F-150 revealed that our
radiator needed to replace not one, but three different factory radiators. Our
goal was to combine the features of the two light-duty radiators and the
heavy-duty Raptor radiator into one even better aluminum radiator. To start
that process, we measured all three radiators, making sure to note any mounting
locations, then brought in a 2018 Raptor to gather even more data.

The next step in creating our aluminum replacement
radiator was to bring all our measurements into 3D space and begin designing.

Everyday Hercules - Aluminum Radiator R&D, Part 2: Design & Prototype

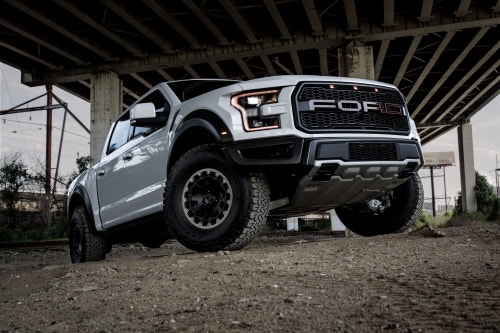

Everyday Hercules - Aluminum Radiator R&D, Part 1: Stock Review

December 20, 2018

Like the Roman hero Hercules, the 2015+ F-150 is capable of other-worldly feats. From the street to the jobsite, and even the dunes or the track, there's little that the F-150 can't conquer. With three available engines producing over 350 lb. ft. of torque, the 2015+ F-150 could probably stop the rotation of the earth. Even with all that power, many of the F-150's on the road will never see Moab or drag a 1,000 lb. log up a mountain. But that doesn't mean your F-150 shouldn't be your everyday Hercules.

Owning an F-150 should mean being confident that you can tackle any task life throws your way, but that confidence may be shaken if your stock cooling system has seen better days. Hercules is nothing without his strength, and if your F-150 is overheating, all the power in the world means little. That's why we here at Mishimoto are developing an all-aluminum radiator to keep your 2015+ F-150 going strong.

The first step in developing our 2015+ F-150 radiator was a familiar one: analyzing the

Everyday Hercules - Aluminum Radiator R&D, Part 1: Stock Review
