Performance Aluminium Radiator, fits Chevrolet C7 Corvette Stingray/Z06 2014-2019
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
- Direct fit for the 2014-2019 Chevrolet C7 Corvette Stingray and Z06
- Full aluminium construction with durable, TIG-welded end tanks
- Drops outlet temperature by 3°C throughout powerband
- 135% increase in fin surface area for optimal cooling properties
- 38% increase in core volume
- Two-row, 2" thick brazed aluminium core, providing ideal fluid temperatures on the street and at the track
- Inverted header plate to maximize core size while ensuring proper fitment
- Specialized AC condenser tabs for easy installation
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Installation Difficulty: Medium
- Direct fit for the 2014-2019 Chevrolet C7 Corvette Stingray and Z06
- Full aluminium construction with durable, TIG-welded end tanks
- Drops outlet temperature by 3°C throughout powerband
- 135% increase in fin surface area for optimal cooling properties
- 38% increase in core volume
- Two-row, 2" thick brazed aluminium core, providing ideal fluid temperatures on the street and at the track
- Inverted header plate to maximize core size while ensuring proper fitment
- Specialized AC condenser tabs for easy installation
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Product Description
The Mishimoto C7 Corvette Performance Aluminium Radiator gives you some piece of mind in the cooling department. Our all-aluminium design features a 2-inch thick core sporting two rows of coolant channels which equates to a 38% increase in core volume. The Mishimoto radiator also increases the fin surface area by 135%. When coupled with the volume increase, you get a 5°F drop in outlet temperatures throughout the powerband.
The all-aluminum end tanks TIG-welded to the core mean that it doesn't just look the part, it acts the part and is a perfect upgrade for durability on top of the performance gains. The inverted header plate and specialized AC condenser brackets mean that fitment and installation is a breeze, and like all of our products, the Mishimoto 2014-2019 Chevrolet C7 Corvette Performance Aluminium Radiator is covered under the Mishimoto Lifetime Warranty.
TECH SPECS
| Overall Height (in) | 17.1 |
|---|---|
| Overall Length (in) | 24.6 |
| Overall Width (in) | 3.9 |
| Fluid Capacity (gal) | 3 |
| Rows | 2 |
| Core Thickness (in) | 2 |
| Drain Plug Thread Size | M12 x 1.5 |
| Applications | 2014-2019 Chevrolet Corvette Stingray 2014-2019 Chevrolet Corvette Z06 |
| Engine Codes | LT1 LT4 |
| Chassis Codes | C7 |
| Coolant Capacity | 3 gallons |
Downloads
Purchase Includes
Mounting Hardware
Mishimoto Lifetime Warranty
It's been 5 years since we first saw the current generation Corvette, and I'm sure for most, there is still the lingering question of how to keep this hometown legend from losing its cool. Unless you live under a rock, you might remember the C7's tumultuous early run, in that these Corvettes struggled to stay within safe engine temperatures, but they've come a long way since then. We wanted to see how much further we could go.

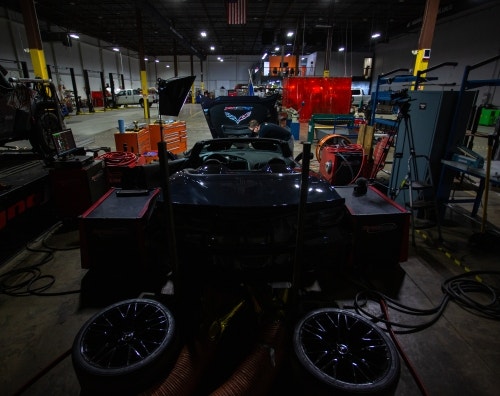

So far you've seen the physical manifestation of our 3D models and the new design, but before we dive into how we tested our radiator, lets take a look at how it stacks up with the stock units. In terms of fin surface area, our design provided a 135% increase over the Stingray unit and a contentious 7.87% increase over the Z06 core. When it comes to volume, our core jumped 119% over the Stingray and 38% over
It's safe to assume that everyone has that one band, that one artist that they're dying to see live, biding their time for the right lineup at the right venue before treating themselves for those VIP tickets. It's almost the same when it comes to the C7. The constant overheating is like suffering through tours that never come close to home or cancelled shows. But finally, the show is booked, the lineup is solid and that LT4 is ready to sing.

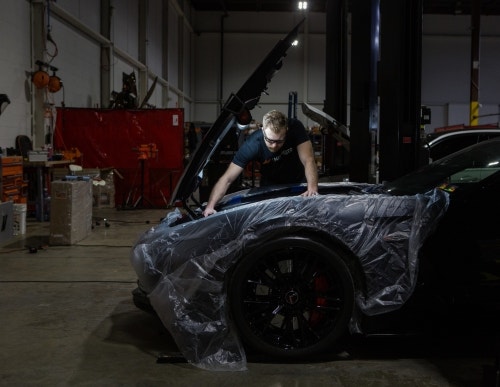

It's been a long enough wait, so let's get straight to the point. When we last left off, our radiator was just the skeleton of a heat exchanger, but it has arrived at the Mishimoto R&D facility for a first look in the, well, metal.
We've all seen wildlife documentaries. David Attenborough delicately narrating as the mighty lion sits slumped in the savanna surrounded by potential prey, but he's just too hot to move. The same scene can be witnessed in the sweltering tarmac savanna here on American soil with the C7. Plenty of open space to run, the other beasts scatter at the sound of the "Vette's deafening roar, yet it sprawls out in the pit, panting and trying to catch its breath.
In the wild, the predators wait until nightfall when it's cooler to go on the prowl, and I supposed you could restrict to only night drives but that might not completely solve your problem. Some day driving is usually required. Luckily this animal is mechanical, which means upgrading
The automotive industry is like a man-made animal kingdom. Manufacturers design and build these mechanical beasts for their specific purpose in this petrol-powered jungle. Just like any ecosystem, these vehicles can either peacefully cohabitate or evolve to either evade or run down their competitors. Some live on to become majestic beasts while others go extinct. Thanks to our inherent love for speed, the Corvette has stuck around since its inception and is now on its seventh and pushing an eighth generation. While the Corvette might be an old timer, especially in the realm of sports cars, this spry geezer is still showing these youngsters how it's done.
The C6 might have gone out with an LS9-powered bang, but the C7 came in with a thunderous boom. Corvettes, no matter the generation, all seem to have their own timeless look,
