Intercooler, fits Ford Focus RS 2016-2018

Model
MMINT-RS-16
As low as £773.98 (Incl. VAT)
Only %1 left
-
+
Add to Wish List
$Login or create an account to earn 644 pts for this product.
Key Features
Features
  • Direct fit for the 2016-2018 Ford Focus RS
  • 80-percent increase in core size
  • 36-percent increase in internal core volume and 214-percent increase in external fin surface area
  • Also available in custom colors
  • 46-percent and 45-percent less pressure drop than stock cold-side and hot-side pipe, respectively
  • 31-percent and 40-percent increase in internal volume compared to stock cold-side and hot-side pipe, respectively
  • Designed to not block off cooling to the PTU
  • 7 whp and 8 wtq bolt-on power increase with stock tune
  • Intercooler Available in Sleek Silver or Stealth Black

Installation Difficulty: Medium

Key Features
  • Direct fit for the 2016-2018 Ford Focus RS
  • 80-percent increase in core size
  • 36-percent increase in internal core volume and 214-percent increase in external fin surface area
  • Also available in custom colors
  • 46-percent and 45-percent less pressure drop than stock cold-side and hot-side pipe, respectively
  • 31-percent and 40-percent increase in internal volume compared to stock cold-side and hot-side pipe, respectively
  • Designed to not block off cooling to the PTU
  • 7 whp and 8 wtq bolt-on power increase with stock tune
  • Intercooler Available in Sleek Silver or Stealth Black

Product Description

Say hello to our intercooler for the 2016-2018 Ford Focus RS! Whether you are a track junkie, occasionally taking your RS for some spirited driving, or making your RS a car to steal the show, this intercooler will suit your needs. Our intercooler has been beefed up with a 36% increase in core volume and a 214% increase in external fin surface area, which means increased air-cooling efficiency for your RS. Our core reduces air outlet temperature by almost 40% while minimizing the inlet/outlet pressure drop across the core, and provides gains of 7hp and 8ft-lbs! The hefty, direct-fit, bar-and-plate core is durable enough to withstand any type of abuse you throw at it, while improving the heat transfer process both at idle and cruising speeds.

This intercooler is designed to function with all factory equipment on the 2016-2018 Focus RS as well as our upgraded intercooler pipes. There is no modification necessary for installation, making it a true bolt-on performance part. As with all our parts, this intercooler comes with the Mishimoto Lifetime Warranty. Order yours today!
Read more

TECH SPECS

More Information
Applications2016-2018 Ford Focus RS
Engine Codes2.3L EcoBoost
Overall Length (in)36.75
Overall Height (in)8.3
Overall Width (in)8.2
Core TypeBar-and-Plate
Core Length (in)25.6
Core Height (in)8.3
Inlet (in)2.75
Outlet (in)2.75
Installation Notes27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

Downloads

Downloads
Engineering Report
pdf
(Size: 1.6 MB)
Engineering Report
Installation Guides
pdf
(Size: 10.9 MB)
Installation Guides

Purchase Includes

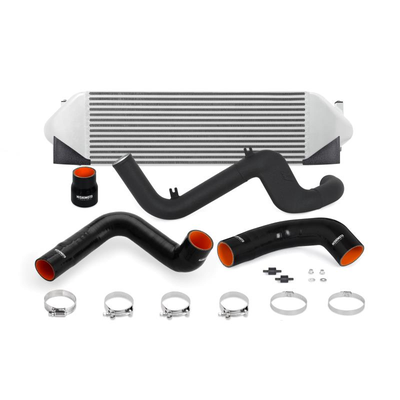

(1) Mishimoto Intercooler
(1) Left & Right Diversion Plate
Mounting Hardware
Mishimoto Lifetime Warranty
