  • Direct fit for 2008–2010 Ford 6.4L Powerstroke
  • Upper support bar provides improved rigidity to minimize front end flex
  • Aluminum radiator incorporates internally strutted tubes in the top and bottom 8 rows for increased strength against high pressure and temperature
  • Coolant hoses are constructed from five layers of heat-resistant fibers and silicone and come pre-assembled with CNC-machined couplers
  • Additional features below
Features

PRODUCT FEATURES

  • Direct fit for 2008–2010 Ford 6.4L Powerstroke
  • Upper support bar provides improved rigidity to minimize front end flex
  • Aluminum radiator incorporates internally strutted tubes in the top and bottom 8 rows for increased strength against high pressure and temperature
  • Coolant hoses are constructed from five layers of heat-resistant fibers and silicone and come pre-assembled with CNC-machined couplers
  • High temp and Low-temp thermostats allow you to tailor the cooling system for cold or hot environments
  • 1.1 bar (16 psi) overflow reservoir cap raises the boiling point of engine coolant to provide a safer and more efficient cooling system
  • All components are back by Mishimoto's Lifetime Warranty

DESCRIPTION

If you're looking to revamp the cooling system on your 2008–2010 Ford 6.4L Powerstroke, and then some, look no further. The Mishimoto 6.4L Powerstroke Heavy-duty Protection Bundle includes everything you need to make sure your cooling system is as tough as the rest of your Ford.

In addition to our fully-aluminum performance radiator and sturdy steel upper support bar, this bundle includes our high-temp thermostat, low-temp thermostat, reservoir tank cap, and silicone coolant hoses. Everything in this bundle is engineered and tested to be direct fit with your 6.4L Powerstroke, while providing greater durability and performance.

Say goodbye to leaking stock radiators and hoses, faulty thermostats and rad caps, and weak upper support bars - with this bundle, you'll never have to worry about another drop of coolant on your driveway or shop floor.

As with all of our products, these components are back by our Mishimoto Lifetime Warranty, for performance backed by peace of mind.

PURCHASE INCLUDES

Radiator:

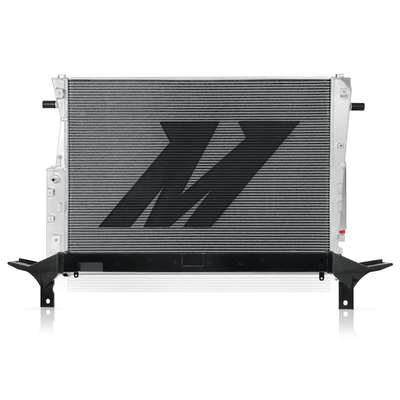

Mishimoto Radiator
Magnetic Drain Plug w/ Dowty Oil Seal
(2) Rubber Mounting Pegs
(8) M6 x 1.0 x 14mm Bolts

Upper Support Bar:
(1) - Mishimoto Support Bar
(2) - Mounting Brackets
(2) - Rubber Hood Stops
(1) - Hardware Pack

Thermostats:
(2) Mishimoto High-temp Thermostats
(2) Mishimoto Low-temp Thermostats
(2) Factory-Style O-Rings

Coolant Hoses:
(3) Silicone Hoses
(4) CNC Aluminum Couplers(pre-attached)
(4) Stainless Steel Spring Clips(pre-attached)
(1) Aluminum Tube Joiner(pre-attached)
(5) 50-70mm Worm-Gear Clamps(pre-attached)
(1) 50-70mm Worm-Gear Clamp
(8) Rubber O-Rings(pre-installed)

Reservoir Cap:
(1) Mishimoto Overflow Reservoir Cap

Mishimoto Lifetime Warranty

NOTES

For written installation instructions, please see the "Tech Info" section of the individual product pages

TECH SPECS

VEHICLE SPECS

Fits 2008-2010 Ford F-250 w/ 6.4L Powerstroke
2008-2010 Ford F-350 w/ 6.4L Powerstroke
2008-2010 Ford F-450 w/ 6.4L Powerstroke
2008-2010 Ford F-550 w/ 6.4L Powerstroke

PRODUCT SPECS

Material Aluminum
Patent number U.S. Patent Number: D717,702 S
Drain Plug Thread Size (M12) x 1.5
Tank Wall Thickness 0.098"
Outlet Quick Disconnect
Rows 2
Inlet Quick Disconnect
Coolant Capacity 8.36
Dual Pass False
Core Thickness 2.76"
ENGINEERING

American Workhorse – Part 3: Looks that Kill

October 27, 2020

So far, we’ve examined chassis flex on the 6.4 Super Duty trucks and we’ve taken a look at our solution in its construction, design, and testing. As our Mishimoto 6.4 Upper Radiator Support Bar pre-sale comes to an imminent close, I’ve got just a bit more to share! Namely, I think it’s time we show … Continue reading American Workhorse – Part 3: Looks that Kill →

Read More

American Workhorse – Part 3: Looks that Kill

American Workhorse – Part 2: Putting Innovation to the Test

October 27, 2020

Welcome to the second blog post detailing the development of the Mishimoto 6.4L Powerstroke upper radiator support bar. Last time, we looked at why front-end chassis flex in the 6.4 Super Duty has the potential to exceed a safe magnitude, using our advanced American architecture as a comparison. We learned that too much flex spells … Continue reading American Workhorse – Part 2: Putting Innovation to the Test →

Read More

American Workhorse – Part 2: Putting Innovation to the Test

American Workhorse – Part 1: Minimizing Chassis Flex

October 27, 2020

As a proud American company, Mishimoto is dedicated to supporting our workforce and ensuring that, from a vehicular perspective, we’ve got the best tools possible to stay tough and work hard. That’s why we’ve been hard at work developing a sturdy, heavy-duty upper radiator support bar for the Ford 6.4L Powerstroke truck in hopes that … Continue reading American Workhorse – Part 1: Minimizing Chassis Flex →

Read More

American Workhorse – Part 1: Minimizing Chassis Flex
