Subaru WRX/STI Oil Cooler Kit, 2001–2005

Packaging
Packaging
Packaging
Packaging
Subaru WRX/STI Oil Cooler Kit, 2001–2005
Subaru WRX/STI Oil Cooler Kit, 2001–2005
Subaru WRX/STI Oil Cooler Kit, 2001–2005
Subaru WRX/STI Oil Cooler Kit, 2001–2005
Subaru WRX/STI Oil Cooler Kit, 2001–2005
Subaru WRX/STI Oil Cooler Kit, 2001–2005
Subaru WRX/STI Oil Cooler Kit, 2001–2005
Subaru WRX/STI Oil Cooler Kit, 2001–2005
Subaru WRX/STI Oil Cooler Kit, 2001–2005
Subaru WRX/STI Oil Cooler Kit, 2001–2005
Not Available
Reward Points You will earn 251 Points for purchasing this product.
Installation Difficulty

Add to Build List
  • Provides Dramatic Temperature Drop
  • 2 psi pressure loss
  • Direct fit for the •06-07 WRX/STI
  • Thermostatic option available
  • Stealth black and sleek silver cooler options
  • Stealth black and sleek silver cooler options
  • Lifetime Warranty

Whether you have a rally-inspired WRX or a built STI, maintaining ideal oil temperatures is necessary for both optimal performance and engine longevity. Treat your flat-four to a dose of reliability with the Mishimoto Subaru WRX/STI Direct-Fit Oil Cooler Kit. This kit includes precision-engineered, application-specific mounting brackets, premade stainless steel braided oil lines, a billet oil sandwich plate, an efficient 10-row stacked-plate Mishimoto oil cooler, and all necessary hardware.

This kit provides .5 qt of additional oil capacity and reduces temperatures by more than 20°F (16°C) while providing minimal pressure loss. This kit is available with the Mishimoto standard Oil Sandwich Plate or the Mishimoto Oil Sandwich Plate with Rear-Mounted Thermostat for additional oil temperature control and optimal performance in any environment. For additional customization, this kit is available with your choice of either a Sleek Silver or Stealth Black cooler.

This kit is the perfect complement to the Mishimoto Subaru WRX/STI Performance aluminium Radiator, Performance aluminium Fan Shroud Kit, and Silicone Radiator Hose Kit for the ultimate cooling solution for your Subaru. As with all our products, this kit includes the Mishimoto Lifetime Warranty.

Mishimoto Automotive (“Mishimoto”) warrants their products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorised dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.

For our complete warranty policy, please click here.

EVEN MORE COOL ITEMS

TECH SPECS

Material 6061 Aluminum

Core Height 70.1 mm

Rows 10

Cooler Construction Stacked-plate

Note Requires trimming of exhaust heat shield for proper installation. Will not fit on vehicles equipped with front mount intercoolers. Fits automatic and manual applications.

Core Thickness 50.03 mm

Core Length 279.4 mm

Fitting Size -10AN

Engine Codes EJ205
EJ255

Chassis Codes GD

Pressure Drop 1-2 psi

Install Torque Specs 15-25 ft/lbs (operating range) for all straight fittings and banjo bolts. Do not exceed the maximum torque rating of 35 ft/lbs.

Caution It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.

Increase In Oil Capacity .50 Quarts (0.473L)

Temp Difference 20+°F (16+°C)

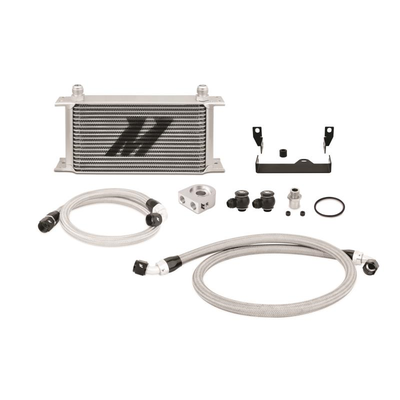

Purchase Includes (2) – Application Specific Mounting Brackets
(1) – 10-Row Oil Cooler
(1) – 3' Stainless Steel Braided Hose w/ -10AN Fittings
(1) – 4'4" Stainless Steel Braided Hose w/ -10AN Fittings
(1) – Oil Sandwich Plate (Thermostatic Option Available)
(1) – Stainless Steel Sandwich Plate Adapter, M20
(2) – Banjo Fitting w/ Bolt M20 x -10AN, Black
(1) – Black Rubber Seal
(1) – Mounting Hardware Set

Also Fits 2001-2005 Subaru WRX
2004-2005 Subaru STI
