Performance Aluminium Radiator, fits Pontiac GTO 2004
Performance Aluminium Radiator, fits Pontiac GTO 2004
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
- Direct fit for the 2004 Pontiac GTO
- Reduces coolant temperatures by +15°F (+6°C)
- Large two-row brazed aluminium core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
- All-aluminium construction with TIG-welded end tanks provides optimal heat dissipation and reliability
- Applicable for both manual and automatic vehicles
- Includes magnetic drain plug
- Mishimoto Lifetime Warranty
Installation Difficulty: Medium
- Direct fit for the 2004 Pontiac GTO
- Reduces coolant temperatures by +15°F (+6°C)
- Large two-row brazed aluminium core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
- All-aluminium construction with TIG-welded end tanks provides optimal heat dissipation and reliability
- Applicable for both manual and automatic vehicles
- Includes magnetic drain plug
- Mishimoto Lifetime Warranty
Product Description
TECH SPECS
| Overall Height (in) | 32.6 |
|---|---|
| Overall Length (in) | 18.65 |
| Overall Width (in) | 5.55 |
| Core Length (in) | 26.55 |
| Core Height (in) | 17 |
| Fluid Capacity (gal) | 3.58 |
| Rows | 2 |
| Inlet (in) | 1.375 |
| Outlet (in) | 1.375 |
| Core Thickness (in) | 1.96 |
| Drain Plug Thread Size | M12 |
| DPI | 2754 |
| Applications | 2004 Vauxhall Monaro (5.7L Engine Only) 2001-2004 Holden Monaro (5.7L Engine Only) |
| Engine Codes | LS-1 (5.7L) |
| Note | This item is for manual and automatic transmission vehicles. Due to the added thickness of the Mishimoto radiator, the clip securing the radiator cover to the electric fan shroud will need to be trimmed for proper fitment. The remaining clips securing the radiator cover to the core support will sufficiently secure it in position. |
| Coolant Capacity | 3.58 |
Compatible Vehicles
Purchase Includes
Magnetic Drain Plug
Mishimoto Lifetime Warranty
Note:
This item is for manual and automatic transmission vehicles.Due to the added thickness of the Mishimoto radiator, the clip securing the radiator cover to the electric fan shroud will need to be trimmed for proper fitment. The remaining clips securing the radiator cover to the core support will sufficiently secure it in position.
Want to see all the product details? Check out our product page linked below!
Mishimoto Pontiac GTO Performance Aluminum Radiator
Product Introduction and Goals

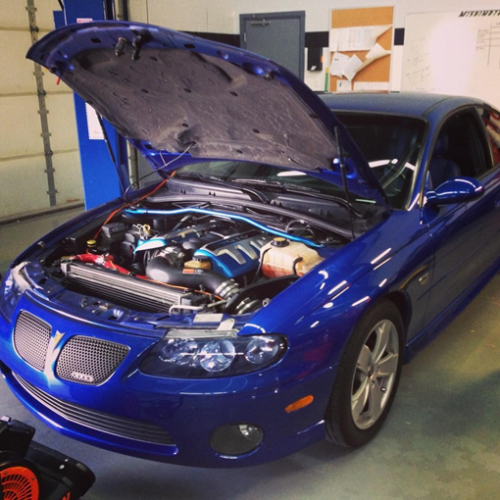

Our team has received numerous requests for a reasonably priced, high-performance aluminum radiator for the new-age Pontiac GTO. After reviewing the project and evaluating the current offerings available, we found a vacancy in the market. Our target would be to design a direct-fit unit that provides additional cooling and reliability over the stock radiator with plastic end tanks, while still maintaining a reasonable price point. Although it was available for only a few years in the States, the Pontiac GTO (OK, it's a Holden) was a seriously unique vehicle. The LS engine combined with an optional manual gearbox was ideal for a quick street car or a fun weekend track or autocross car. These cars may be a touch heavy, but thanks
