  • Direct fit for 2019+ Ford Ranger 2.3L EcoBoost
  • Improves flow by 25.6% on the hot side and 16.6% on the cold side
  • Increases internal volume by 26.4% on the hot side and 13.7% on the cold side for more power potential
  • Mandrel-bent aluminum pipes eliminate restrictive bends
  • Note: Coupons and discounts do not apply to items in pre-sale
  • Additional features below
Features

PRODUCT FEATURES

  • Direct fit for 2019+ Ford Ranger 2.3L EcoBoost
  • Improves flow by 25.6% on the hot side and 16.6% on the cold side
  • Increases internal volume by 26.4% on the hot side and 13.7% on the cold side for more power potential
  • Mandrel-bent aluminum pipes eliminate restrictive bends
  • Cold-side pipe includes bung that can be drilled and tapped for a sensor or boost gauge
  • Includes Mishimoto Silicone Boots with DuraCore™ Technology
  • Available in polished or micro-wrinkle black powder-coated finish
  • Includes high-torque worm gear clamps
  • Mishimoto Lifetime Warranty
  • Note: Coupons and discounts do not apply to items in pre-sale

DESCRIPTION

The 2019+ Ford Ranger 2.3L EcoBoost is one of the most capable small trucks on the planet. With its direct-injected and turbocharged engine producing 310 lb-ft of torque, the 2019+ Ranger combines efficiency with capability. The 2.3L EcoBoost engine under the hood of the Ranger produces plenty of power to let you roam free, but what if you want more? Adding a tune and more boost is a great way to squeeze more power from the Ranger, but the stock intercooler pipes can only handle so much boost. That’s why Mishimoto has developed this aluminum intercooler pipe and boot kit for the 2019+ Ford Ranger 2.3L EcoBoost.

Our all-aluminum intercooler pipes are constructed of mandrel-bent aluminum with a polished or micro-wrinkle black powder-coated finish. These pipes eliminate restrictive bends in the factory pipe, allowing for up to 25% better flow and power potential. The Mishimoto intercooler pipes are also larger than stock, with a 19.86% increase in volume to let your turbo breathe easy.

This kit includes Mishimoto Silicone Boots with DuraCore™ technology. Mishimoto DuraCore technology is a synthetic material that comprises the innermost layer of all Mishimoto Silicone Diesel Boots. Compared to standard silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. To add even more reliability, this kit includes Mishimoto high-torque worm gear clamps for consistent holding power.

Like all our Ranger products, this 2019+ Ford Ranger 2.3 EcoBoost Intercooler Pipe and Boot Kit is a direct fit and is backed by our Mishimoto Lifetime Warranty.

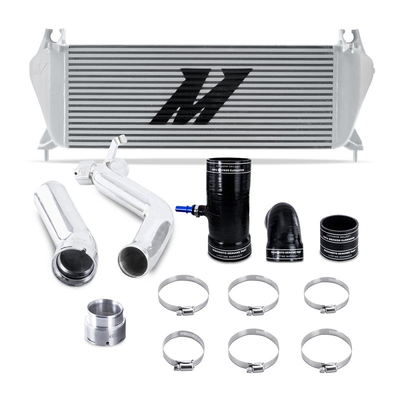

PURCHASE INCLUDES

(1) Aluminum Hot-Side Intercooler Pipe
(1) Aluminum Cold-Side Intercooler Pipe
(1) CNC-Machined Aluminum Hot-side Pipe Adapter
(2) DuraCore™ Hot-Side Couplers
(1) DuraCore™ Cold-Side Coupler
(6) High-Torque Worm Gear Clamps
Bypass Valve Mounting Hardware
Mishimoto Lifetime Warranty

TECH SPECS

VEHICLE SPECS

MakeFord
Chassis Codes T6
Fits 2019+ Ford Ranger 2.3L EcoBoost

PRODUCT SPECS

Installation Torque Specs 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
Pipe Diameter 2.83"
Weight5 lbs
Coating Powder Coated
Pipe MaterialAluminium
