Radiator and Fan Shroud Assembly, fits Ford Fiesta ST 2014-2019
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
- Direct-fit for the 2014-2019 Ford Fiesta ST
- Reduces coolant temperatures by 10°F (5.5°C) during steady state driving
- Includes Mishimoto compact fan shroud for increased air passage through the radiator
- Includes installed air bleed screw for quick evacuation of air pockets in the system
- No cutting or fabrication necessary
- 3-row, 2" thick brazed aluminium core with TIG-welded end tanks
- Fully compatible with stock hoses and Mishimoto Fiesta ST Silicone Hoses
- Compatible with most intercooler and intercooler piping kits
- Mishimoto Lifetime Warranty
Installation Difficulty: Hard
- Direct-fit for the 2014-2019 Ford Fiesta ST
- Reduces coolant temperatures by 10°F (5.5°C) during steady state driving
- Includes Mishimoto compact fan shroud for increased air passage through the radiator
- Includes installed air bleed screw for quick evacuation of air pockets in the system
- No cutting or fabrication necessary
- 3-row, 2" thick brazed aluminium core with TIG-welded end tanks
- Fully compatible with stock hoses and Mishimoto Fiesta ST Silicone Hoses
- Compatible with most intercooler and intercooler piping kits
- Mishimoto Lifetime Warranty
Product Description
The radiator core measures in at a massive 52mm thick, requiring our engineers to get creative with the fitment of the fan and shroud. Unlike other Mishimoto radiators, this Fiesta ST radiator includes a Mishimoto compact fan shroud for increased airflow through the radiator. This compact fan shroud retains the use of the stock electric fans, and was stringently tested to ensure that the airflow remained intact for performance applications. Testing during steady-state driving yielded coolant temperature drops of 10°F (5.5°C) when compared to the stock Fiesta ST radiator and fan shroud. Like the rest of the Mishimoto lineup of Fiesta ST parts, this radiator comes with the Mishimoto Lifetime Warranty, to ensure superior quality and craftsmanship.
TECH SPECS
| Overall Height (in) | 25.67 |
|---|---|
| Overall Length (in) | 19.25 |
| Overall Width (in) | 5.67 |
| Core Length (in) | 24.68 |
| Core Height (in) | 14.4 |
| Rows | 3 |
| Inlet (in) | 1.1 |
| Outlet (in) | 1.1 |
| Core Thickness (in) | 2.04 |
| Applications | 2014-2019 Ford Fiesta ST |
| Chassis Codes | B3 |
Purchase Includes
Aluminum Fan Shroud
Mounting Hardware
Installed Rubber Trim Seal
Lifetime Warranty
Interested in picking up our Fiesta ST aluminum radiator? Check out our the product page below.
Mishimoto 2014+ Ford Fiesta ST Aluminum Radiator

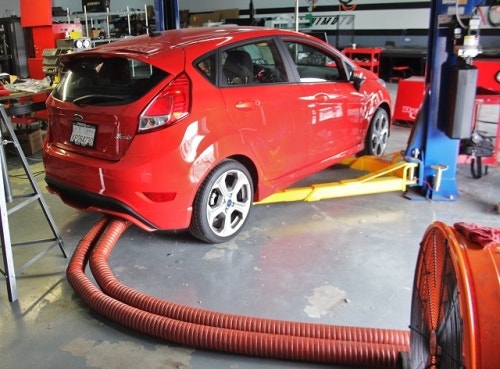

After quite an extensive developmental process, we're finally ready for some Ford Fiesta ST (FIST) radiator testing. This portion of our R&D process is crucial, as it will determine if our design is perfect or requires minor tweaks, or if the slate needs to be wiped clean for a fresh start. This particular radiator is unlike most that we develop. FIST owners are getting in trouble on the track, and no good solution to rising coolant temperatures has yet been found. We've attributed this to inefficiencies in both airflow and the inadequate stock FIST radiator. In order to fit a larger, more efficient radiator, we've had to modify the stock fan shroud. In doing so, we've created the space needed for the thicker radiator core,
Interested in picking up our Fiesta ST aluminum radiator? Check out our discounted pre-sale linked below.
Mishimoto 2014+ Ford Fiesta ST Aluminum Radiator Pre-Sale!

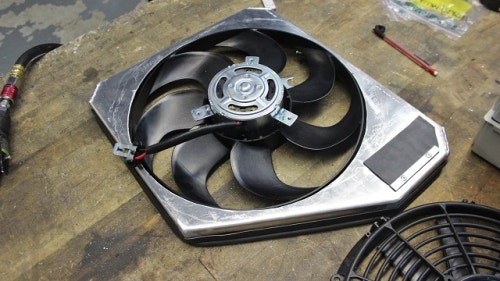

Now that we have a solid direction for our design plans, this project is moving right along. Last time we started the fabrication process for our fan shroud design. This unique setup would utilize the stock fan motor and blade, but we would relocate it in a space that would allow our thicker Ford Fiesta radiator to fit properly.
Fabrication Continued

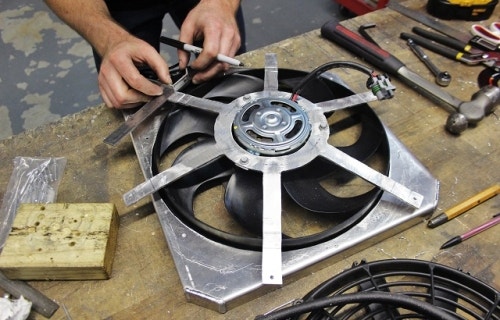

With our shroud completed to its basic shape, our final portion of the design required mounting the fan to the shroud, creating a fan-blade cage, and creating appropriate mounts for the stock fan controller.
We started with the cage, as this piece would determine the location and design of the other components on the list.
Interested in picking up our Fiesta ST aluminum radiator? Check out our discounted pre-sale linked below.
Mishimoto 2014+ Ford Fiesta ST Aluminum Radiator Pre-Sale!
It's been a few months since our last major update, and for good reason. Our team has been quite busy. As a quick recap, last time we test fitted our first Ford Fiesta ST (FIST) radiator prototype, only to find that the core thickness was larger than the vehicle would allow. Once the radiator was bolted to the fan shroud, the shroud made contact with numerous components on the engine, prompting us to pull out our markers and take a second look at the drawing board.
Now, keep in mind the FIST has some serious cooling issues. Any pleasures on the track are normally negated after a lap or two causes coolant temperatures to reach the stratosphere, prompting a quick dart to the paddock. To improve the chances
Interested in picking up our Fiesta ST aluminum radiator? Check out our discounted pre-sale linked below.
Mishimoto 2014+ Ford Fiesta ST Aluminum Radiator Pre-Sale!

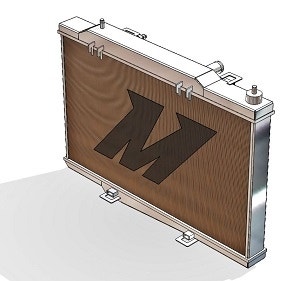

We left you with some pretty cool 3D models last time. We are back with something even better " our first prototype has arrived!
Prototype Radiator

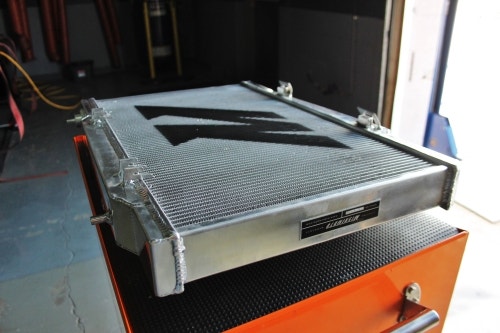

I know you guys are excited to see this piece so I won't extend the wait any longer. Check out some shots of our first prototype!
First, a look at the front of the radiator.
Mishimoto prototype Ford Fiesta radiator
Interested in picking up our Fiesta ST aluminum radiator? Check out our discounted pre-sale linked below.
Mishimoto 2014+ Ford Fiesta ST Aluminum Radiator Pre-Sale!
If you keep up with the perpetually bustling engineering team here at Mishimoto, you would have noticed our recent projects involving the Focus ST. We could not ignore this vehicle's little brother, the Fiesta, and after numerous requests we decided it was time to start development of new performance Fiesta ST parts.
Before jumping into development, we needed a vehicle. So, we made a trip to the local Ford dealer here in Delaware and drove back in the beauty shown below.
" width="300" height="200">
