Mishimoto is excited to expand our line of Ford Powerstroke cooling products to the 2017+ 6.7L Powerstroke with our all-aluminum, direct-fit radiator. We've taken our experience with previous generations of Powerstroke cooling products and combined it to create a larger, stronger, and more capable primary radiator for the 2017+ 6.7L Powerstroke. Extruded tubes with internal struts help distribute stress and provide greater strength and pressure tolerance. Our rubberized upper mounting peg design is carried over from our 6.4L and previous generation 6.7L Powerstroke radiators as well. These rubberized pegs help absorb frame flex and redirect it away from the radiator's core. Increased reliability wasn't our only goal for this 6.7L Powerstroke radiator, however. The 14-percent increase in core volume, 68-percent increase in surface area, and 62-percent increase in coolant capacity add up to a radiator that's capable of cooling even the most demanding truck. Of course, this 2017+ 6.7L Powerstroke primary radiator is backed by our Mishimoto Lifetime Warranty, so you never have to worry about buying another radiator again.
Model:
MMRAD-F2D-17

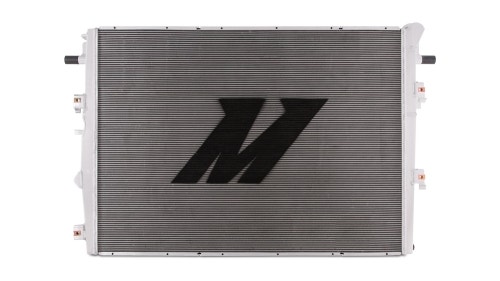

Aluminium Primary Radiator, fits Ford 6.7L Powerstroke 2017+ PRE-SALE
£1,118.40
Sale Price
Installation Difficulty:
Medium
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
Installation Specs
Medium
DIFFICULTY
3 Parts
PARTS INCLUDED
- • Mishimoto Radiator
- • Mishimoto Magnetic Drain Plug
- • Mounting Hardware
- • Mishimoto Lifetime Warranty
1 Resource
INSTALL DOCS
Key Benefits
- 37% more coolant capacity over the factory radiator builds a larger thermal buffer for the 6.7L Powerstroke under sustained towing, hauling, and load cycles.
- 20% increase in fin surface area and 10% greater core volume work together to reject heat faster than the factory unit at every demand level.
- CNC-machined quick-disconnect inlet and outlet included for a leak-free, no-adapter installation that mates directly with stock hose connections.
- Extruded tubes with internal struts replace the lower-strength factory core construction — built to withstand the pressure cycles of a diesel cooling system.
- Co-molded aluminum/rubber mounting pegs reduce the truck's torque transfer to the radiator, protecting core integrity over the life of the build.
- Confirmed direct fit for the 2017+ Ford 6.7L Powerstroke — no cutting, fabricating, or adapter work required.
- Oversized core and increased capacity handle the thermal demands of stock and modified 6.7L Powerstroke setups, including towing-spec and performance-tuned trucks.
- Own it for life — backed by Mishimoto's Lifetime Warranty, your investment is protected long after install day.
- Note: Coupons and discounts do not apply to items in pre-sale
Key Benefits
- 37% more coolant capacity over the factory radiator builds a larger thermal buffer for the 6.7L Powerstroke under sustained towing, hauling, and load cycles.
- 20% increase in fin surface area and 10% greater core volume work together to reject heat faster than the factory unit at every demand level.
- CNC-machined quick-disconnect inlet and outlet included for a leak-free, no-adapter installation that mates directly with stock hose connections.
- Extruded tubes with internal struts replace the lower-strength factory core construction — built to withstand the pressure cycles of a diesel cooling system.
- Co-molded aluminum/rubber mounting pegs reduce the truck's torque transfer to the radiator, protecting core integrity over the life of the build.
- Confirmed direct fit for the 2017+ Ford 6.7L Powerstroke — no cutting, fabricating, or adapter work required.
- Oversized core and increased capacity handle the thermal demands of stock and modified 6.7L Powerstroke setups, including towing-spec and performance-tuned trucks.
- Own it for life — backed by Mishimoto's Lifetime Warranty, your investment is protected long after install day.
| Overall Length (in) | 48 |
|---|---|
| Overall Height (in) | 30 |
| Overall Width (in) | 7.75 |
| Core Length (in) | 38.38 |
| Core Height (in) | 27.75 |
| Core Thickness (in) | 1.88 |
| Fluid Capacity (gal) | 9.5 |
| Rows | 2 |
| Applications | 2017+ Ford Super Duty w/ 6.7L Powerstroke |
| Coolant Capacity | 9.5 |
Installation Guides
Mishimoto Radiator
Mishimoto Magnetic Drain Plug
Mounting Hardware
Mishimoto Lifetime Warranty
Mishimoto Magnetic Drain Plug
Mounting Hardware
Mishimoto Lifetime Warranty
Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.
For our complete warranty policy, please click here.
