Ford 6.4L Powerstroke Factory-Fit Boot Kit, 2008-2010
If you’re paying with PayPal, your charge will be processed immediately. For credit cards, you’ll also be charged right away, but the charge will appear as a hold; no actual transfer of funds occurs until we ship your order.
We know quality is your priority, and it’s ours too. We’re working tirelessly to engineer the best product possible, but occasionally, delays may occur. In the event of a delay, we will keep you up-to-date on the timing of your new product.
For our international customers and those outside the continental US (Alaska and Hawaii), orders may take longer and international shipping charges may apply. Please contact us if you have specific questions regarding your order.
If you’ve got any further questions or concerns about your pre-sale order, our customer service team is here to help!
Thanks for your order!
Mishimoto is proud to release a direct-fit silicone boot kit with DuraCore™ technology designed specifically for the 6.4L Ford Powerstroke. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto Silicone Diesel Boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. To add even more reliability this kit includes Mishimoto Constant Tension T-bolt Clamps for accurate and consistent holding power. As with all of our Powerstroke performance parts, this boot kit comes with the Mishimoto Lifetime Warranty.
Mishimoto Automotive (“Mishimoto”) warrants their products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorised dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.
For our complete warranty policy, please click here.
Ext. Material Temp. Rating
Int. Layer Temp. Rating

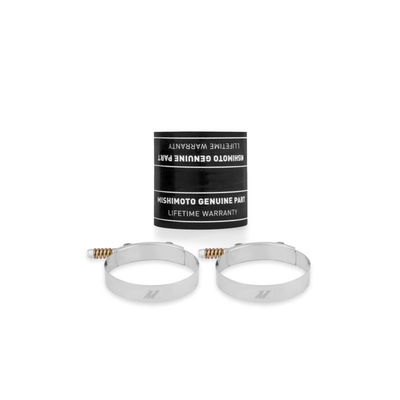

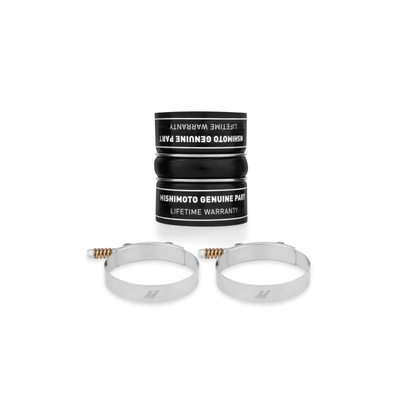

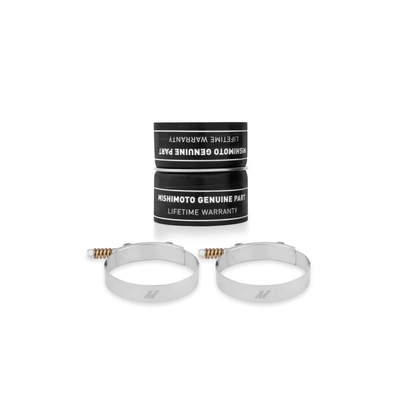

(4) Silicone Boots with DuraCore™ Technology (8) Constant-Tension T-Bolt Clamps Mishimoto Lifetime Warranty
Installation Torque Specs 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
Factory Part Number
Boot 1: 8C3Z-6W650-A Boot 2: 8C3Z-6W651-A Boot 3: 8C3Z-6N651-A Boot 4: 8C3Z-6N650-A
Heat-Resistant Embedded Fibers
2008-2010 Ford F-250 w/ 6.4L Powerstroke 2008-2010 Ford F-350 w/ 6.4L Powerstroke 2008-2010 Ford F-450 w/ 6.4L Powerstroke
Boot 1: 86.4 mm
Boot 2: 86.4 mm, 91.4 mm
Boot 3: 86.4 mm
Boot 4: 86.4 mm
Boot 1: 76.2 mm
Boot 2: 76.2 mm, 81.3 mm
Boot 3: 76.2 mm
Boot 4: 76.2 mm
