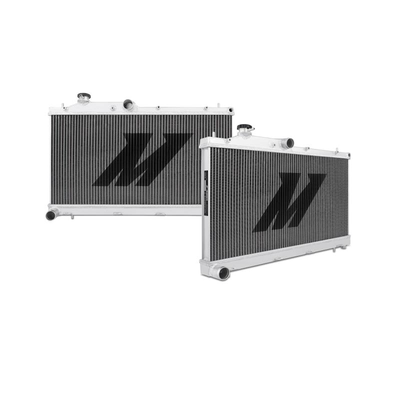

Performance Aluminium Radiator, fits Subaru WRX 2008-2014/Subaru STI 2008-2021

Model
MMRAD-STI-08
£347.59 (Incl. VAT)
  • Your vehicle requires 2 bottles of full strength coolant or 3 bottles of premixed coolant.
-
+
Add to Wish List
$Login or create an account to earn 289 pts for this product.
Key Features
Features
  • Direct fit for the 2008-2014 Subaru WRX/2008-2021 STI
  • Full aluminum construction including durable, TIG-welded end tanks
  • Features a two-row, 1.65-in thick, efficient brazed aluminum core
  • Increased fluid capacity and optimal heat dissipation
  • Provides efficient temperature reduction for use on the street, track, rallycross, or autocross course
  • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
  • Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
  • Mishimoto Lifetime Warranty

Installation Difficulty: Medium

Key Features
  • Direct fit for the 2008-2014 Subaru WRX/2008-2021 STI
  • Full aluminum construction including durable, TIG-welded end tanks
  • Features a two-row, 1.65-in thick, efficient brazed aluminum core
  • Increased fluid capacity and optimal heat dissipation
  • Provides efficient temperature reduction for use on the street, track, rallycross, or autocross course
  • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
  • Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
  • Mishimoto Lifetime Warranty

Product Description

The Mishimoto performance aluminium radiator for the WRX and STI is designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto WRX radiator features a lightweight dual core, 100% brazed aluminium, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminium radiator is a direct fit, making installation effortless with no cutting or modification required. This radiator comes with a Mishimoto 1.3 Bar High-Pressure Radiator Cap and, like all our aluminium radiators, comes with the Mishimoto Lifetime Warranty.
Read more

TECH SPECS

More Information
Overall Height (in) 21.8
Overall Length (in) 28
Overall Width (in) 2.15
Core Length (in) 27.08
Core Height (in) 13.39
Fluid Capacity (gal) 2.21
Rows 2
Inlet (in) 1.54
Outlet (in) 1.54
Core Thickness (in) 1.65
Drain Plug Thread Size M12 x 1.5
DPI 13091/13093
Applications 2008-2014 Subaru WRX
2008-2021 Subaru STI
2009-2013 Subaru Forester XT
2005-2009 Subaru Outback XT
2005-2009 Subaru Legacy GT
Engine Codes EJ255
EJ257
Chassis Codes GE
GH
Note
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.

Caution:
The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two-way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.

It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.

Use small fitting for:
2008-2014 Subaru WRX
2008-2021 Subaru STI

Use large fitting for:
2010-2014 Subaru WRX
2005-2009 Subaru Legacy GT
2005-2009 Subaru Outback XT
2009-2013 Subaru Forester XT
Coolant Capacity 2.21

Purchase Includes

Mishimoto Radiator
Mishimoto Radiator Cap
Overflow Nipples - 2
Magnetic Drain Plug
Mishimoto Lifetime Warranty

Note:

This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.

Caution:
The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two-way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.

It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.

Use small fitting for:
2008-2014 Subaru WRX
2008-2021 Subaru STI

Use large fitting for:
2010-2014 Subaru WRX
2005-2009 Subaru Legacy GT
2005-2009 Subaru Outback XT
2009-2013 Subaru Forester XT

Warranty

Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.

For our complete warranty policy, please click here.
