- Direct fit for the 2008+ Mitsubishi Lancer Evolution X
- 10 whp and 10 tq bolt-on power increase
- Efficient 3.5" thick bar-and-plate core provides optimal heat dissipation and low AITs
- Full aluminium cast end tanks provide increased durability and smooth, uninterrupted airflow
- Strategically designed fins for minimal pressure loss
- Substantial core volume will support vehicles up to 600 whp
- Available with a powder-coated finish in Sleek Silver or Stealth Black
- Mishimoto Lifetime Warranty
- CARB EO #: D-759

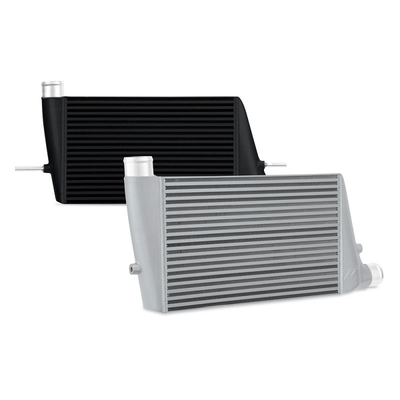

A high-horsepower Evo demands an intercooler that provides optimal airflow and a cool, dense charge of air. Modified vehicles running high-boost pressures often suffer from increased air intake temperatures (AITs) and heat soak, which can result in diminished performance. Keep your intake temperatures under control with the Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler.
This intercooler is a direct bolt-on unit engineered specifically for the Evo X. Thanks to an efficient 3.5" thick bar-and-plate core, this intercooler provides optimal heat dissipation and low AITs. The robust cast aluminium end tanks provide superior durability and smooth, uninterrupted airflow. The Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler provides a dyno-proven increase of 10 whp and 10 tq, and it will support modified vehicles up to 600 whp! This Evo intercooler core is equipped with a strategic fin design that promotes substantial heat exchange while providing minimal pressure loss across the core. Whether you are making a pass at the drag strip or sliding around a rally stage, this intercooler will provide the cooling that your engine needs to perform at its best.
This Evo intercooler is available with a powder-coated finish in either Sleek Silver or Stealth Black. As with all our products, this intercooler includes the Mishimoto Lifetime Warranty.
CNC Mounting Pegs
Mishimoto Lifetime Warranty

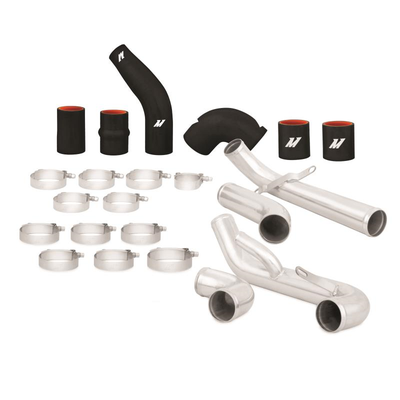

This intercooler can be used with stock or aftermarket intercooler pipes. The CNC mounting pegs must be installed by the customer.
- TECH SPECS
Make Mitsubishi Engine Codes 4B11T Chassis Codes CZ4A
Installation Torque Specs 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

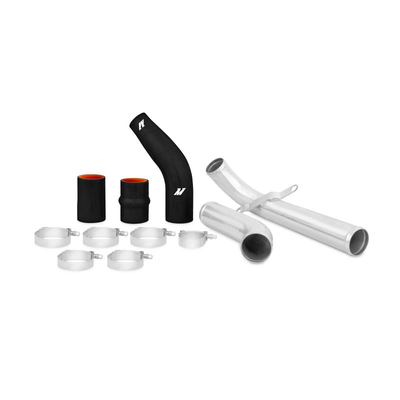

Silicone Couplers UPPER PIPES SILICONE COUPLERS
Upper Coupler 1: 1.73" / 2.44", 2.125" / 2.83"
Upper Coupler 2: 2.44", 2.83"
Upper Coupler 3: 2.44", 2.83"

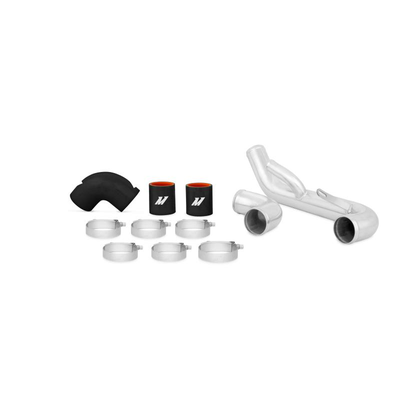

LOWER PIPE SILICONE COUPLERS
Lower Coupler 1: 2.44" / 2.71", 2.83" / 3.11"
Lower Coupler 2: 2.44", 2.83"
Lower Coupler 3: 2.44", 2.83"
Pipe Diameter Inner Diameter–2.375"
Constant Tension T-Bolt Clamps Specs (10) 2.75" T-Bolt Clamps
(1) 2" T-Bolt Clamp
(1) 3" T-Bolt Clamp
Weight 23 Tank Wall Thickness 3.5 Fin Pitch External: 6.35 fins per inch
Internal: 7.5 fins per inch
Outlet 2.5 Core Length 19.5 Core Height 12 Core Width 3.5 Inlet 2.375 Core Size 19.5 x 12 x 3.5 Overall Width 4.5 Overall Height 13.7 Overall Length 28.3 Construction Bar-and-Plate
Mishimoto Automotive (“Mishimoto”) warrants their products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorised dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.
For our complete warranty policy, please click here.
