Ford 6.0L Powerstroke Factory-Fit Hot-Side Boot Kit, 2003–2007

Ford 6.0L Powerstroke Factory-Fit Hot-Side Boot Kit, 2003–2007
Ford 6.0L Powerstroke Factory-Fit Hot-Side Boot Kit, 2003–2007
Ford 6.0L Powerstroke Factory-Fit Hot-Side Boot Kit, 2003–2007
Ford 6.0L Powerstroke Factory-Fit Hot-Side Boot Kit, 2003–2007
Not Available
Installation Difficulty

Add to Build List
  • Direct fit for the 2003–2007 6.0L Powerstroke
  • Replaces weak factory piping
  • Mandrel-bent, polished aluminium pipe eliminates restrictive bends
  • Improves airflow, power, and EGTs
  • DuraCore™ technology provides superior resistance to heat, pressure, fuel, and oil
  • Includes high-quality constant-tension T-bolt clamps
  • Mishimoto Lifetime Warranty

Mishimoto is proud to release a direct-fit silicone boot kit with DuraCore™ technology designed specifically for the 6.0L Ford Powerstroke. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. To add even more reliability this kit includes Mishimoto constant tension T-bolt clamps for accurate and consistent holding power. This boot kit is precision engineered for a flawless fit on your Powerstroke and will provide years of service. Like all Mishimoto Powerstroke performance parts, this Powerstroke performance boot kit comes with the Mishimoto Lifetime Warranty.

Mishimoto Automotive (“Mishimoto”) warrants their products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorised dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.

For our complete warranty policy, please click here.

EVEN MORE COOL ITEMS

TECH SPECS

Material Silicone DuraCore™

Exterior Material Silicone

Ext. Material Temp. Rating 428°F

Int. Layer Temp. Rating 572°F

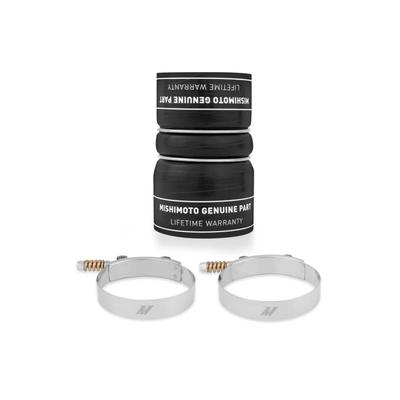

Purchase Includes (2) Silicone Boots with DuraCore™ Technology
(4) Constant Tension T-Bolt Clamps
Mishimoto Lifetime Warranty

Note This boot kit fits hot-side (passenger side) only.

Factory Part Number Boot 1: 6C3Z-6C640-B
Boot 2: 6C3Z-6C640-A

Interior Layer DuraCore™

Interior Material Heat-Resistant Embedded Fibers

Also Fits 2003-2007 Ford F250 w/ 6.0L Powerstroke
2003-2007 Ford F350 w/ 6.0L Powerstroke
2003-2007 Ford F450 w/ 6.0L Powerstroke
2003-2007 Ford F550 w/ 6.0L Powerstroke

Outer Diameter Boot 1: 86.4 mm, 92.7 mm Boot 2: 72.4 mm, 73.6 mm

Max Temp 428°F

Inner Diameter Boot 1: 76.2 mm, 82.5 mm Boot 2: 62.2 mm, 63.5 mm
