X-Line Performance Aluminium Radiator, fits BMW E30/E36 1988-1999

Model
MMRAD-E36-92X
£600.17 (Incl. VAT)
-
+
Life time warranty seal
Add your photo

X-Line Performance Aluminium Radiator, fits BMW E30/E36 1988-1999

Model
MMRAD-E36-92X
£600.17 (Incl. VAT)
  • Your vehicle requires 3 bottles of full strength coolant or 6 bottles of premixed coolant.
-
+

Free shipping on this product and on orders over $100.

Add to Wish List
$Login or create an account to earn 500 pts for this product.
Key Features
Features
  • Direct fit for the 1988-1999 BMW E30/E36 with 6 Cylinder engine
  • Full aluminium construction with durable, TIG-welded end tanks
  • Two-row, 1.57" thick brazed aluminium core, providing ideal fluid temperatures on the street or track
  • Functions with stock mechanical fan and stock shrouding

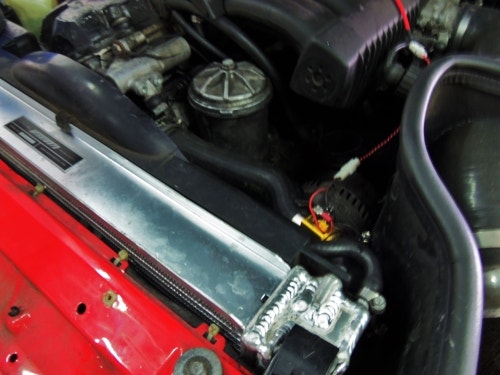

  • Includes threaded port for the stock temperature sensor
  • Perfect for use with stock, modified, forced induction, or swapped vehicles
  • Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
  • Mishimoto Lifetime Warranty

Installation Difficulty: Medium

Key Features
  • Direct fit for the 1988-1999 BMW E30/E36 with 6 Cylinder engine
  • Full aluminium construction with durable, TIG-welded end tanks
  • Two-row, 1.57" thick brazed aluminium core, providing ideal fluid temperatures on the street or track
  • Functions with stock mechanical fan and stock shrouding
  • Includes threaded port for the stock temperature sensor
  • Perfect for use with stock, modified, forced induction, or swapped vehicles
  • Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
  • Mishimoto Lifetime Warranty

Product Description

An ideal upgrade for the brittle stock BMW radiator, the Mishimoto E30/E36 X-Line Performance aluminium Radiator provides your vehicle with enhanced reliability and improved cooling efficiency. BMWs are known to have frequent cooling-related failures due to the use of numerous plastic components throughout the system. A simple coolant leak can result in overheating, accelerated engine wear, or head gasket failure. Whether you have a daily-driven E36 M3 or an M20 spinning a large turbocharger, this BMW radiator provides ideal temperatures on and off the track. Most people overlook the importance of installing an upgraded performance radiator in their vehicle. The Mishimoto E36 radiator reduces coolant temperature by 30°F (16.62°C) and is 20% more efficient than the stock radiator. Along with providing an increased coolant capacity of 91%, this BMW radiator improves heat dissipation, which is beneficial for both stock and modified applications.

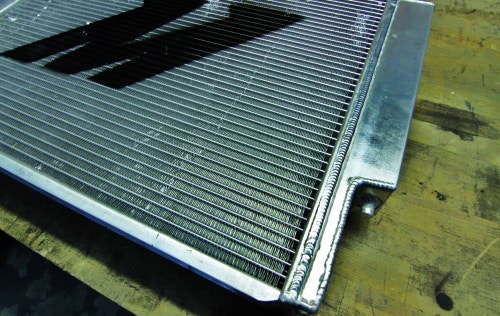

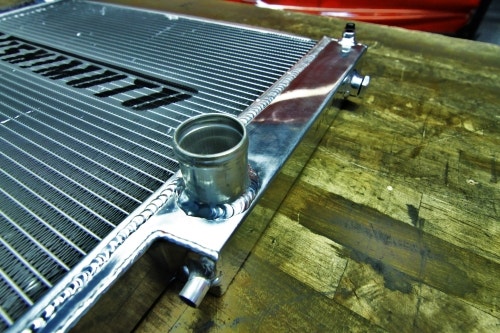

The Mishimoto E30/E36 X-Line Performance aluminium Radiator is manufactured using durable aircraft-quality aluminium end tanks, precision TIG-welded to an efficient brazed aluminium core. The inlet and outlets provide precise leak-free connections, and all factory overflow and temperature sensor ports are present on the Mishimoto aluminium radiator for use with stock sensors and hoses. This performance radiator also includes a Mishimoto M12 x 1.5 Magnetic Oil Drain Plug with dowty seal, which effectively removes metal fragments circulating in the cooling system. The Mishimoto E36 radiator incorporates mounting points for the Euro oil cooler, and it is a direct bolt-on fit for all 6-cylinder E30/E36 models from 1988 to 1991. As with all our BMW parts, this aluminium radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Read more

TECH SPECS

More Information
Overall Height (in) 18.7
Overall Length (in) 26.8
Overall Width (in) 4.1
Core Length (in) 21.77
Core Height (in) 17.24
Fluid Capacity (gal) 5.22
Rows 3
Inlet (in) 1.57
Outlet (in) 1.57
Core Thickness (in) 2.25
Drain Plug Thread Size M12 x 1.5
Applications 1988-1991 BMW 325I
1992-1995 BMW 325I/IC/IS
1995-1999 BMW M3
1996-1998 BMW 328I/IC/IS
1998-1999 BMW 323IC/IS
Engine Codes S52
M52
M50TU
M20B25
S50
Chassis Codes E30
E36
Note This item is for Manual Transmission and Automatic Transmission vehicles. It features threaded rivet provisions for the automatic transmission cooler.



Stock E30 fan shroud does not fit with this product.



This product will require conversion brackets for mounting Euro oil cooler
Coolant Capacity 5.22

Compatible Vehicles

Downloads

Downloads
Engineering Report
pdf
(Size: 4.2 MB)
Engineering Report

Purchase Includes

Mishimoto Radiator
Magnetic Drain Plug w/ Dowty Oil Seal
M14 Sensor Bung w/ Dowty Oil Seal
(2) M6 x 1.0 x 16mm Flange Hex Bolts
Mishimoto Lifetime Warranty

Note:

This item is for Manual Transmission and Automatic Transmission vehicles. It features threaded rivet provisions for the automatic transmission cooler.



Stock E30 fan shroud does not fit with this product.



This product will require conversion brackets for mounting Euro oil cooler
