Performance Aluminum Radiator, fits Ford Focus ST 2013-2018
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
- Direct fit for the 2013+ Ford Focus ST
- 34mm, 2-row core with optimal fin height and fin pitch for maximum cooling efficiency
- Features precision cut mounting brackets for a clean and seamless installation
- 25% increase in coolant capacity
- Fully compatible with stock hoses and Mishimoto Focus ST Silicone Hoses
- Compatible with most intercooler and intercooler piping kits
- 16.6% increase in coolant surface area
- 10.7% increase in air surface area
- Fully brazed aluminum core with TIG-welded end tanks
- Mishimoto Lifetime Warranty
Installation Difficulty: Medium
- Direct fit for the 2013+ Ford Focus ST
- 34mm, 2-row core with optimal fin height and fin pitch for maximum cooling efficiency
- Features precision cut mounting brackets for a clean and seamless installation
- 25% increase in coolant capacity
- Fully compatible with stock hoses and Mishimoto Focus ST Silicone Hoses
- Compatible with most intercooler and intercooler piping kits
- 16.6% increase in coolant surface area
- 10.7% increase in air surface area
- Fully brazed aluminum core with TIG-welded end tanks
- Mishimoto Lifetime Warranty
Product Description
TECH SPECS
| Overall Height (in) | 20.5 |
|---|---|
| Overall Length (in) | 31.2 |
| Overall Width (in) | 4.33 |
| Core Length (in) | 26.5 |
| Core Height (in) | 17.9 |
| Fluid Capacity (gal) | 1.49 |
| Rows | 2 |
| Inlet (in) | 1.5 |
| Outlet (in) | 1.26 |
| Core Thickness (in) | 1.34 |
| Applications | 2013-2018 Ford Focus ST |
| Chassis Codes | C Platform |
| Note | A drain plug is not included with this radiator. Only fits Focus ST models. |
| Coolant Capacity | 1.49 |
Downloads
Purchase Includes
Mounting Hardware
Installed Rubber Trim Seal
Lifetime Warranty
Note:
A drain plug is not included with this radiator.Only fits Focus ST models.
Quick Recap
It has been around two months since our last update on this project. We've had great feedback on the forums, and we appreciate everyone's comments and patience as we work toward completion. Our goal is to provide a performance radiator that allows users to track drive their STs without fear of overheating and entering limp mode.
The primary reason for the delay was the construction of our first prototype. This radiator design is quite complex, as we showed with our 3D models in the first segment.

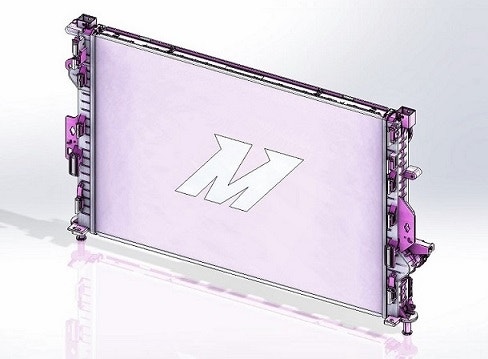

Mishimoto Ford Focus ST radiator 3D model
The stock Focus radiator features several complicated components, each of which needed to be replicated in our design. Our
Our engineering team often tackles complex problems to provide ideal solutions for customers. This is true for all our product lines, across a broad range of vehicle makes and models. We are not strangers to Ford's lineup of EcoBoost models, and our team is quite familiar with the issues that exist for each. In general, we've found that the stock liquid cooling systems are not handling the abuse from heavy-footed ST (Fiesta, Focus) and Mustang owners. Each model shows deficiencies in coolant heat transfer, rising oil temperatures, and power-crippling heat-soak.
In our effort to solve each problem, we've started a ton of awesome projects, performed unique testing, and we've had a blast working with the EcoBoost community. Now, we turn our attention to the Focus ST radiator. This component has become the elephant in the room, if the room were the paddock at the track. All around the world, Focus owners are hitting the track expecting a fun day of battles against physics, rev-match downshifts,
